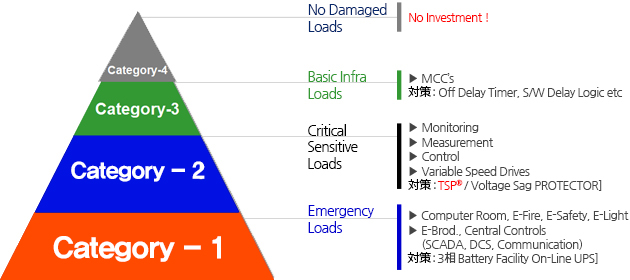

• Smart FACTORYのSmart POWER Infra PYRAMID

  • Smart FACTORYの Smart POWER Infra using [:UPS + TSP®]

    - By using the fast charge
    - discharge ultra-capacitor having over 10 years lifetime, the momentary voltage sag compensator TSP®
    - having 1 second duration of sag compensation with no maintenance
    - will be applied along with On-Line UPS used for 30 minutes of outage depending on the loads’ electric al feature and howcritical the target loads are
  • Smart FACTORYのSmart POWER LAYER

  • Smart POWER VaccineTM : TSP® (The Second POWER)

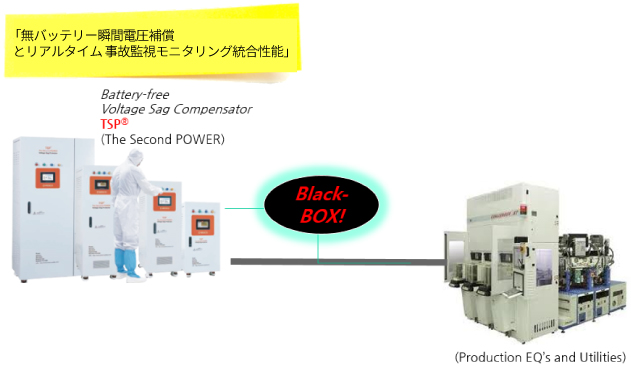

  • 自動化装備の瞬間電圧補償装置の新技術標準
    Smart POWER Vaccine®: TSP®(The Second POWER)

  • Smart POWER Vaccine® : TSP®(The Second POWER)

  • 半導体工場の適用事例
    Smart POWER Vaccine® : TSP®(The Second POWER)

  • 半導体Foundry工場での瞬間電圧降下への事故補償成功事例
    Smart POWER Vaccine® : TSP®(The Second POWER)

    JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC Total
    2005年 V-sag 発生回数 - - 1 2 2 9 3 2 3 - 3 25
    Drop率 / Drop Time 11.8%
    73ms    		 12.90%
    87ms    		 17.70%
    53ms    		 39.60%
    110ms    		 50.90%
    180ms    		 27.70%
    90ms    		 77%
    213ms    		 -
    -    		 19.50%
    200ms    		 -
    -
    Down Time[Hr] - - 24 153 96 456 1,054 681 1,609 - 188 - 4,261
    設備 Down 数量(台) - - 1 13 4 129 277 181 173 - 19 - 797
    2006年 V-sag 発生回数 - - - 2 3 5 6 3 - - 2 1 22
    Drop率 / Drop Time 31.80%
    120ms    		 25.60%
    120ms    		 27.80%
    95ms    		 38.30%
    250ms    		 49.70%
    115ms    		 -
    -    		 12.70%
    60ms    		 13.00%
    95ms
    Down Time[Hr] - - - 8 - 21 25 70 - - - - 124
    設備 数量（台 - - - 7 - 6 11 28 - - - - 52
    改善効果[Hr] - - -24 -145 -96 -435 -1,029 -611 -1,609 - -188 - -4,137

    - 2005年に対する2006年のV-Sag補償対策の構築による装備のDown率を比べて改善効果を算定
